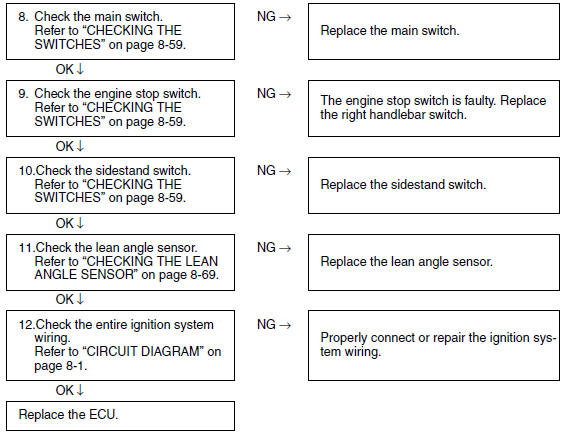

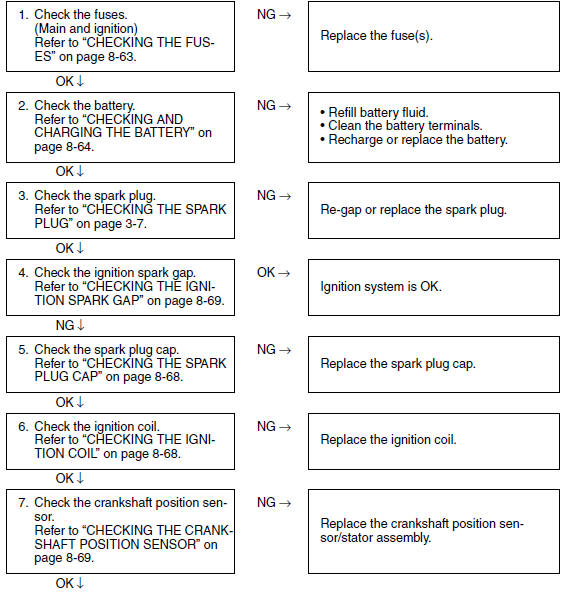

The ignition system fails to operate (no spark or intermittent spark).
NOTE:
1. Seats
2. Fuel tank
3. Right side cover
4. Left side panel
5. Left upper side cowling


Circuit diagramInstalling the crankshaft
1. Install:
Crankshaft "1"
NOTE:
Install the crankshaft with the crankshaft installer
pot "2", crankshaft installer bolt "3", adapter
(M12) "4" and spacer (crankshaft installer) "5".
CAUTION:To avoid scratching the crankshaft and to
ease the installation procedure, lubricate ...
Adjusting the exhaust gas volume
NOTE:
Be sure to set the CO density level to standard,
and then adjust the exhaust gas volume.
1. Remove:
Rider seat
Refer to "GENERAL CHASSIS" on page 4-1.
2. Set the main switch to "OFF".
3. Disconnect:
Self-diagnosis signal connector "1"
4. Connect:
FI diagnostic tool "2 ...
Self-diagnostic function table
If the ECU detects an abnormal signal from a sensor while the vehicle is
being driven, the ECU illuminates
the engine trouble warning light and provides the engine with alternate
operating instructions that
are appropriate for the type of malfunction.
When an abnormal signal is received fro ...
