Yamaha YZF-R125 Service Manual: Checking the thermostat
1. Check:
- Thermostat
Does not open at 80.5-83.5 C (176.9-182.3
F)
Replace.

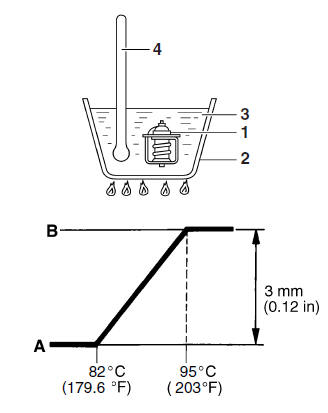

a. Suspend the thermostat "1" in a container "2" filled with water.
b. Slowly heat the water "3".
c. Place a thermometer "4" in the water.
d. While stirring the water, observe the thermostat and thermometer's indicated temperature.
A. Fully closed
B. Fully open
NOTE:
If the accuracy of the thermostat is in doubt, replace it. A faulty thermostat could cause serious overheating or overcooling.
2. Check:
- Thermostat cover
Cracks/damage
Replace.
3. Check:
- Radiator inlet hose
Cracks/damage
Replace.
Thermostat
...
Installing the thermostat
1. Install:
Thermostat
NOTE:
Install the thermostat with its breather hole "a"
facing up.
2. Install:
Copper washer
Coolant temperature sensor
CAUTION:Use extreme care when ...
