Yamaha YZF-R125 Service Manual: Removing the primary drive gear and balancer gears

Yamaha YZF-R125 Service Manual / Engine / Balancer gear / Removing the primary drive gear and balancer gears

1. Loosen:

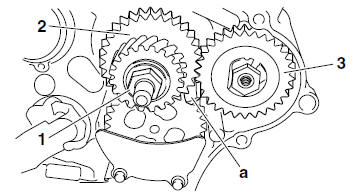

  • Primary drive gear nut "1"

NOTE:

Place the aluminum plate "a" between the balancer drive gear "2" and the balancer driven gear "3", and then loosen the primary drive gear nut.

Removing the primary drive gear and balancer gears


2. Straighten the lock washer tab.

3. Loosen:

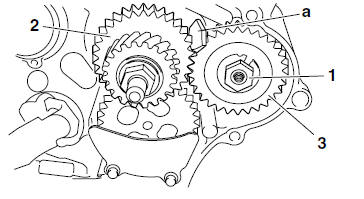

  • Balancer driven gear nut "1"

NOTE:

Place the aluminum plate "a" between the balancer drive gear "2" the and the balancer driven gear "3", and then loosen the balancer driven gear nut.

Removing the primary drive gear and balancer gears


    Balancer gear
    ...

    Checking the balancer gears and primary drive gear
    1. Check: Balancer drive gear Balancer driven gear Cracks/damage/wear Replace. 2. Check: Primary drive gear Refer to "CHECKING THE PRIMARY DRIVE GEAR" on page 5-43. ...
