Throttle body


Throttle body


Checking the fuel pressure
1. Check: Pressure regulator operation a. Remove the fuel hose connector cover "1" and disconnect the fuel hose "2" from the fuel pump. CAUTION:Although the fuel has been removed from ...

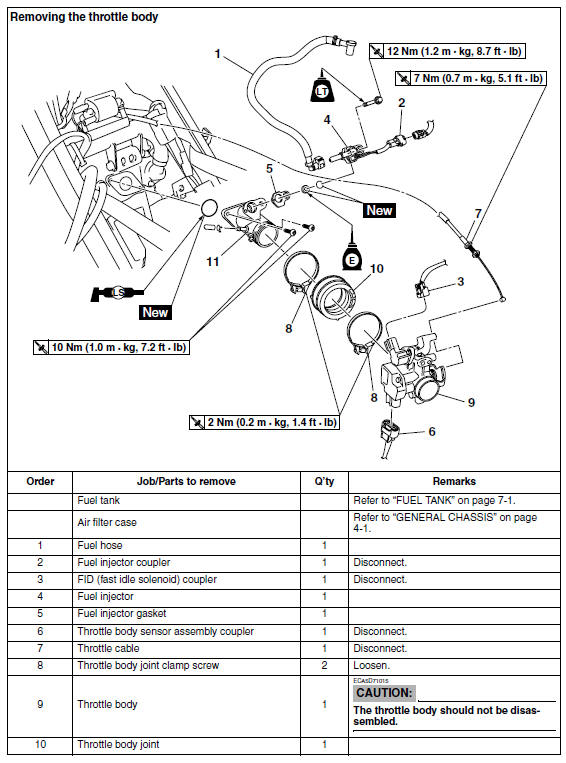

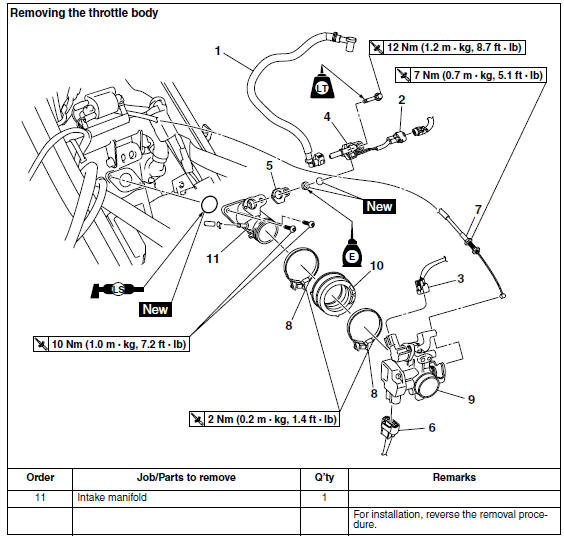

Removing the throttle body
1. Extract the fuel in the fuel tank through the fuel tank filler hole with a pump. 2. Disconnect: Fuel hose WARNINGCover the fuel hose connections with a cloth when disconnecti ...

Other materials:

Starting circuit cut-off system operation
If the engine stop switch is set to " " and the main switch is set to "ON" (both switches are closed), the starter motor can only operate if at least one of the following conditions is met: The transmission is in neutral (the neutral switch is closed). The clutch lever is pulled to the ...

Setting the diagnostic mode
1. Set the main switch to "OFF" and the engine stop switch to " ". 2. Disconnect the self-diagnosis signal connector "1", and then connect the FI diagnostic tool "2" as shown. 3. Disconnect the fuel pump coupler. 4. While pressing the "MODE" button, set the main switch to "ON". NOTE: ...

Checking the throttle body joint and air filter case joint
1. Remove: Right lower side cowling Left lower side cowling Refer to "GENERAL CHASSIS" on page 4-1. 2. Check: Throttle body joint "1" Air filter case joint "2" Cracks/damage Replace. 3. Install: Right lower side cowling Left lower side cowling Refer to "GENERAL CHAS ...
