NOTE:
1. Seats
2. Fuel tank
3. Left upper side cowling
4. Right side panel
5. Left lower side cowling



Circuit diagram
Cooling systemInstalling the primary drive gear and balancer gears
1. Install:
Balancer driven gear "1"
Lock washer
Balancer drive gear "2"
Primary drive gear
Washer "3"
Balancer driven gear nut
Primary drive gear nut
NOTE:
Align the punch mark "a" in the balancer drive
gear "2" with the punch mark "b" in the balancer
driven gear "1".
...
Removing the generator
1. Remove:
Generator rotor nut "1"
Washer
NOTE:
While holding the generator rotor "2" with the
sheave holder "3", loosen the generator rotor
nut.
Do not allow the sheave holder to touch the
projection on the generator rotor.
2. Remove:
Generator rotor "1"
(with the ...

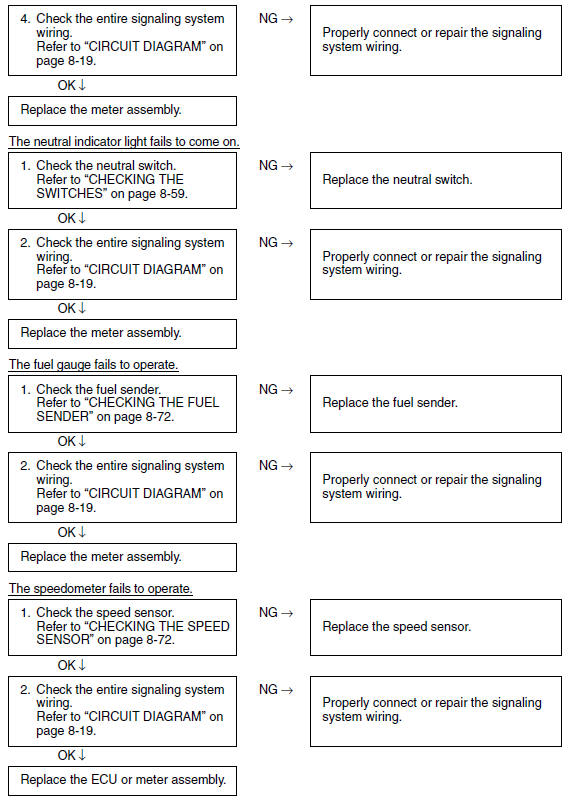

Checking the speed sensor
1. Check:
Speed sensor output voltage
Out of specification → Replace.
a. Connect the pocket tester (DC 20 V) to the
speed sensor coupler (wire harness end) as
shown.
Positive tester probe
gray "1"
Negative tester probe
gray/black "2"
b. Set the main switch to "ON".
c. ...
