Yamaha YZF-R125 Service Manual: Checking the fuel sender

1. Drain the fuel from the fuel tank.

2. Check:

Fuel sender resistance Out of specification → Replace the fuel sender.

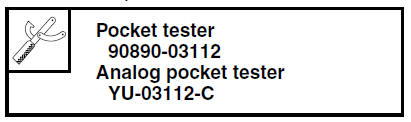

a. Connect the pocket tester ( ×
10) to the fuel sender coupler as shown.


  • Positive tester probe
    sky blue "1"
  • Negative tester probe
    orange/white "2"

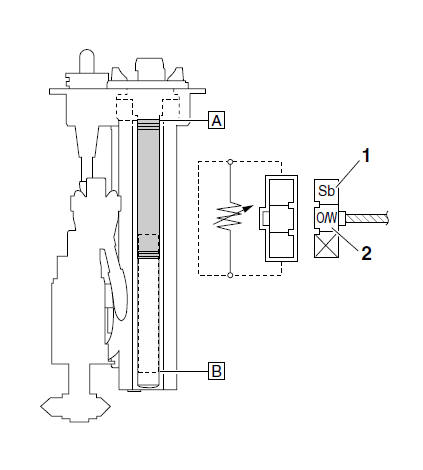

Checking the fuel sender


A. Full fuel tank position

B. Empty fuel tank position

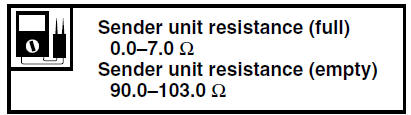

b. Measure the fuel sender resistance.
