Yamaha YZF-R125 Service Manual: Checking the camshaft

Yamaha YZF-R125 Service Manual / Engine / Camshaft / Checking the camshaft

1. Check:

  • Camshaft lobes Blue discoloration/pitting/scratches
    Replace the camshaft.

2. Measure:

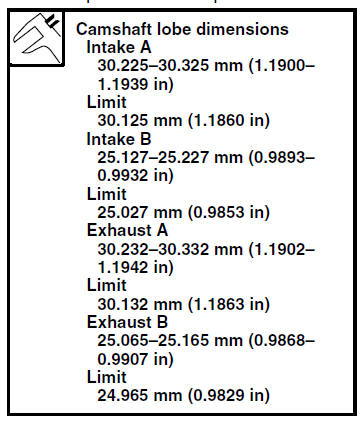

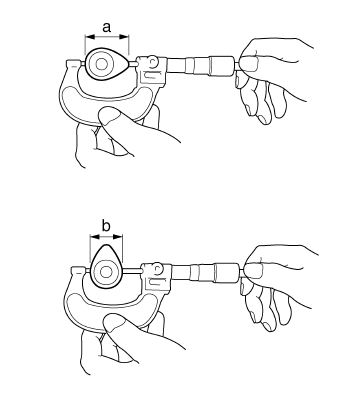

  • Camshaft lobe dimensions "a" and "b" Out of specification Replace
    the camshaft.

Checking the camshaft


3. Check:

Camshaft oil passage Obstruction Blow out with
compressed air.

    Camshaft
    ...

    Checking the rocker arms and rocker arm shafts
    The following procedure applies to all of the rocker arms and rocker arm shafts. 1. Check: Rocker arm Damage/wear Replace. 2. Check: Rocker arm shaft Blue discoloration/excessive wea ...
