1. Stand the vehicle on a level surface.
WARNING Securely support the vehicle so that there is no danger of it falling over. |
2. Check:
3. Hold the vehicle upright and apply the front brake.
4. Check:

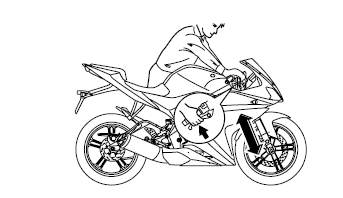

Front fork operation Push down hard on the handlebar several times and check if the front fork rebounds smoothly.
Rough movement Repair.
Refer to "FRONT FORK" on page 4-44.
Lubrication diagrams
Clutch push lever
Main axle
Drive axle
Crankshaft
Oil filter
Oil pump assembly
Oil strainer
To cylinder head
Camshaft
Crankshaft
Main axle
Drive axle
...
Checking the speed sensor
1. Check:
Speed sensor output voltage
Out of specification → Replace.
a. Connect the pocket tester (DC 20 V) to the
speed sensor coupler (wire harness end) as
shown.
Positive tester probe
gray "1"
Negative tester probe
gray/black "2"
b. Set the main switch to "ON".
c. ...
Periodic maintenance and lubrication chart
NOTE:
The annual checks must be performed every year, except if a
kilometer-based maintenance,
or for the UK, a mileage-based maintenance, is performed instead.
From 30000 km (17500 mi), repeat the maintenance intervals starting
from 6000 km (3500 mi).
Items marked with an asterisk s ...
