Yamaha YZF-R125 Service Manual: Crankcase
- Separating the crankcase
- Checking the crankcase
- Checking the timing chain and timing chain guide

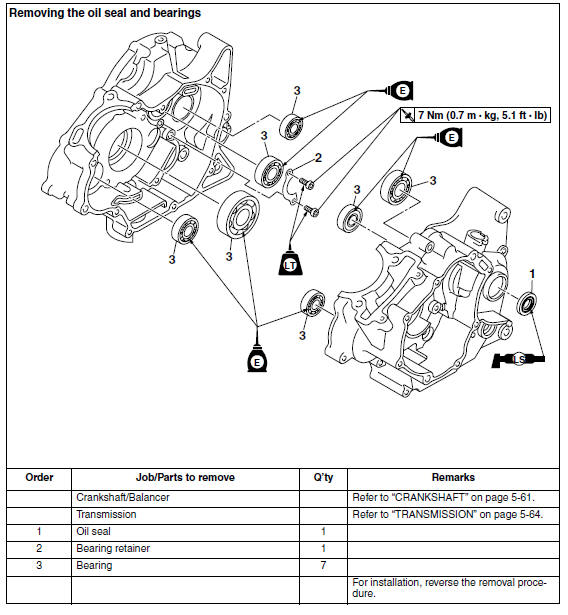

- Checking the bearings and oil seal
- Installing the bearing retainer
- Assembling the crankcase
Installing the primary drive gear and balancer gears
1. Install:
Balancer driven gear "1"
Lock washer
Balancer drive gear "2"
Primary drive gear
Washer "3"
Balancer driven gear nut
Primary drive gear nut
NOTE:
Align the punch mar ...

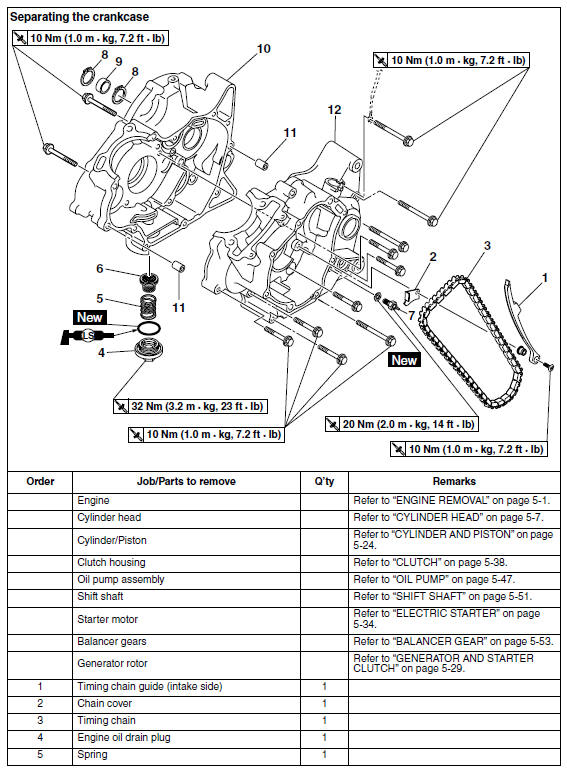

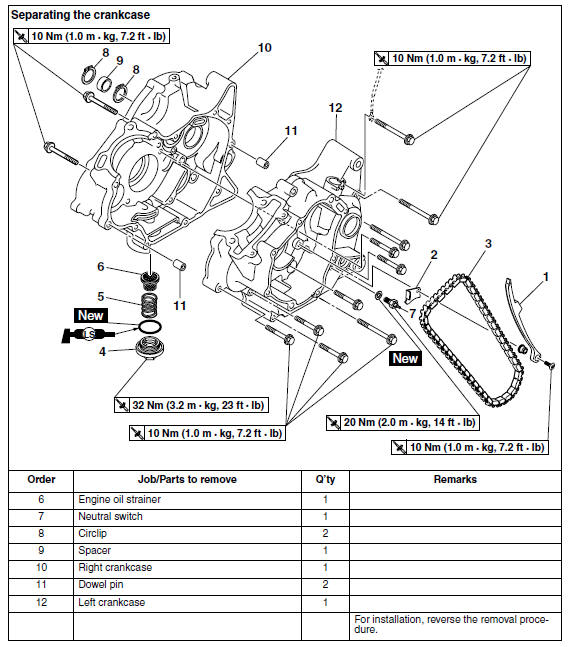

Separating the crankcase
1. Remove:
Crankcase bolts
NOTE:
Loosen each bolt 1/4 of a turn at a time, in stages
and in the proper sequence as shown.
A. Right crankcase
B. Left crankcase
2. Turn:
Shift drum s ...
