Yamaha YZF-R125 Service Manual: Valves and valve springs

Yamaha YZF-R125 Service Manual / Engine / Valves and valve springs

Valves and valve springs


Installing the camshaft and rocker arms
1. Lubricate: Rocker arms Rocker arm shafts 2. Lubricate: Camshaft 3. Install: Camshaft "1" NOTE: Make sure that the camshaft projections "a" and hole "b" are positioned as s ...

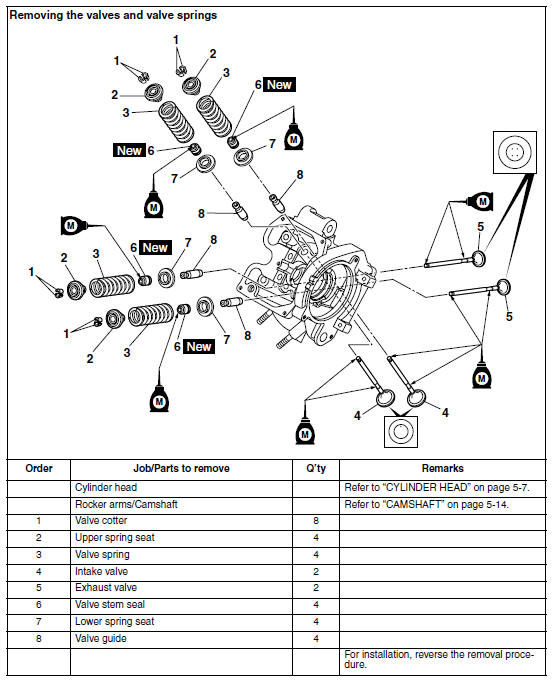

Removing the valves
The following procedure applies to all of the valves and related components. NOTE: Before removing the internal parts of the cylinder head (e.g., valves, valve springs, valve seats), make sure th ...

Other materials:

General tightening torque specifications
This chart specifies tightening torques for standard fasteners with a standard ISO thread pitch. Tightening torque specifications for special components or assemblies are provided for each chapter of this manual. To avoid warpage, tighten multi-fastener assemblies in a crisscross pattern and ...

Checking the condition of the bulb sockets
The following procedure applies to all of the bulb sockets. 1. Check: Bulb socket (for continuity) (with the pocket tester) No continuity Replace. NOTE: Check each bulb socket for continuity in the same manner as described in the bulb section, however, note the following. a. Install a ...

Removing the cylinder head
1. Align: "I" mark "a" on the generator rotor (with the stationary pointer "b" on the generator cover) a. Turn the crankshaft counterclockwise. b. When the piston is at TDC on the compression stroke, align the "I" mark "c" on the camshaft sprocket with the mark "d" on the cylinder h ...
